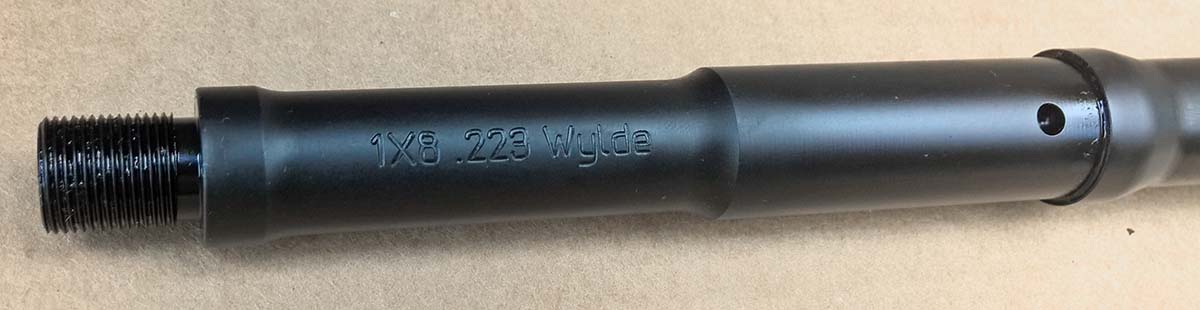

-- Button rifled and stress relieved barrel turned to perfect concentricity with the bore for superior accuracy.
-- Rifles fitted with this barrel feel lighter than they are because there is less weight out at the muzzle end.
-- This contour barrel is more rigid at the chamber end than M4 profile and is less weight overall.
-- Mid-length gas system is improved over military specifications and has softer action cycling and recoil
characteristics.
-- Mid-length gas system means the front sight sits closer to the muzzle end, giving a longer sight radius
for better iron sighting.
Ordering barrels from The Tactical Toolbox is easy. Because there are many options, we categorized the barrel ordering by length and included color options on each order button.

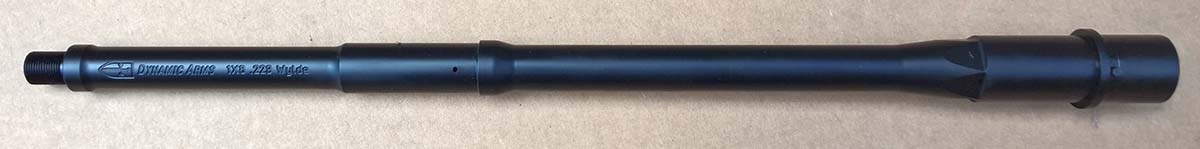

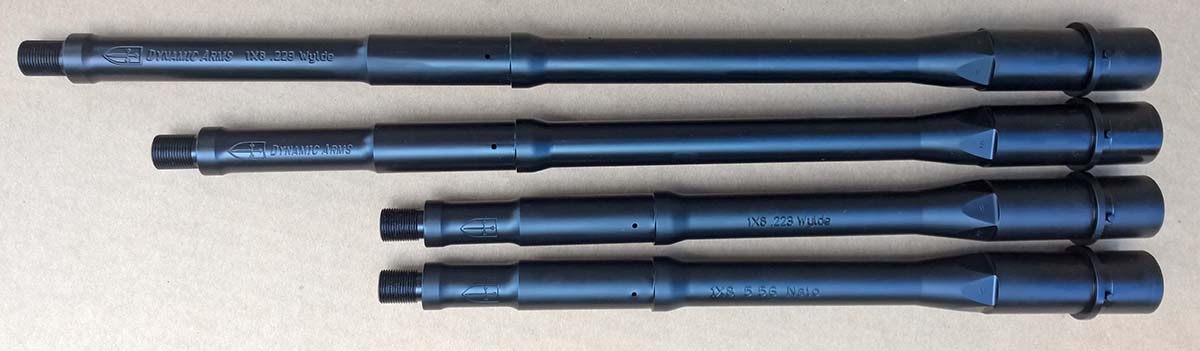

16" Barrels:
Melonite bore and chamber
starting at $299 plus shipping.
Cerakote $30 extra.

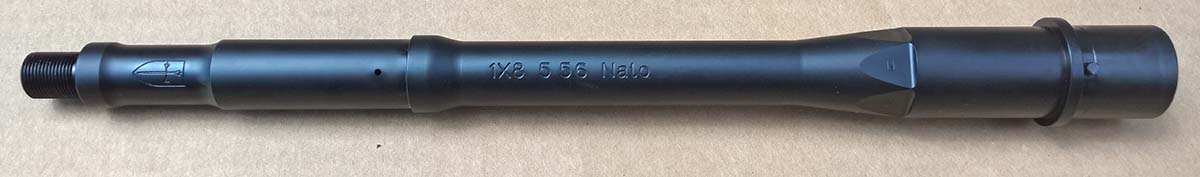

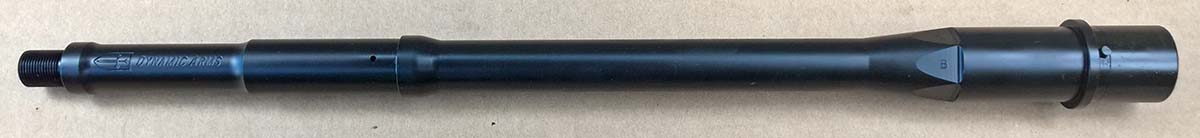

14.5" Barrels:
Melonite bore and chamber
starting at $299 plus shipping.
Cerakote $30 extra.
16" Barrels:
Melonite bore and chamber
starting at $299 plus shipping.
Cerakote $30 extra.
14.5" Barrels:
Melonite bore and chamber
starting at $299 plus shipping.
Cerakote $30 extra.

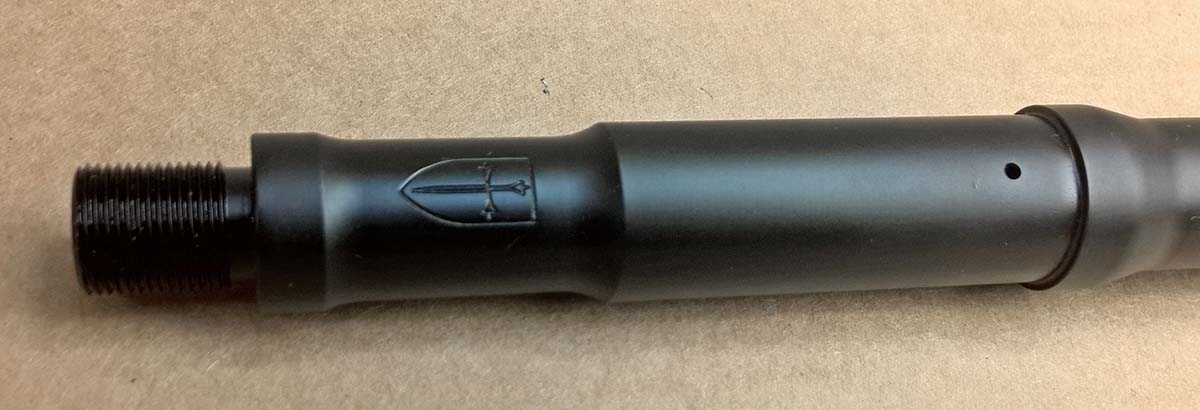

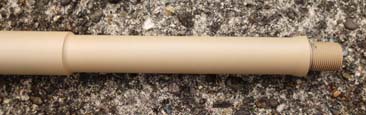

Contour: advanced contour
Contour under handguards: 0.700" diameter

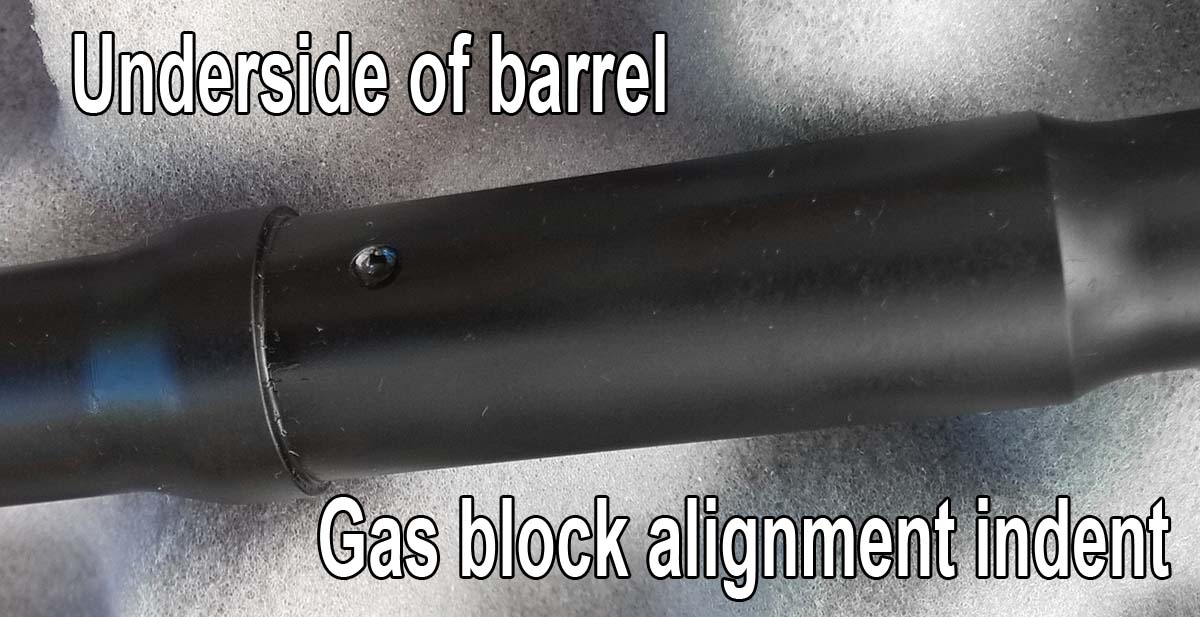

Contour for gas block: 0.750" diameter
Contour to muzzle: 0.680" diameter
Barrel Steel: 4150 CMV
Twist rate: 1:8 (stabilizes 50gr to 77gr bullets)
Chamber: 5.56mm Nato
Gas system: 9" mid-length with 0.074" and 0.076" gas porting for 16" and 14.5" barrels, respectively

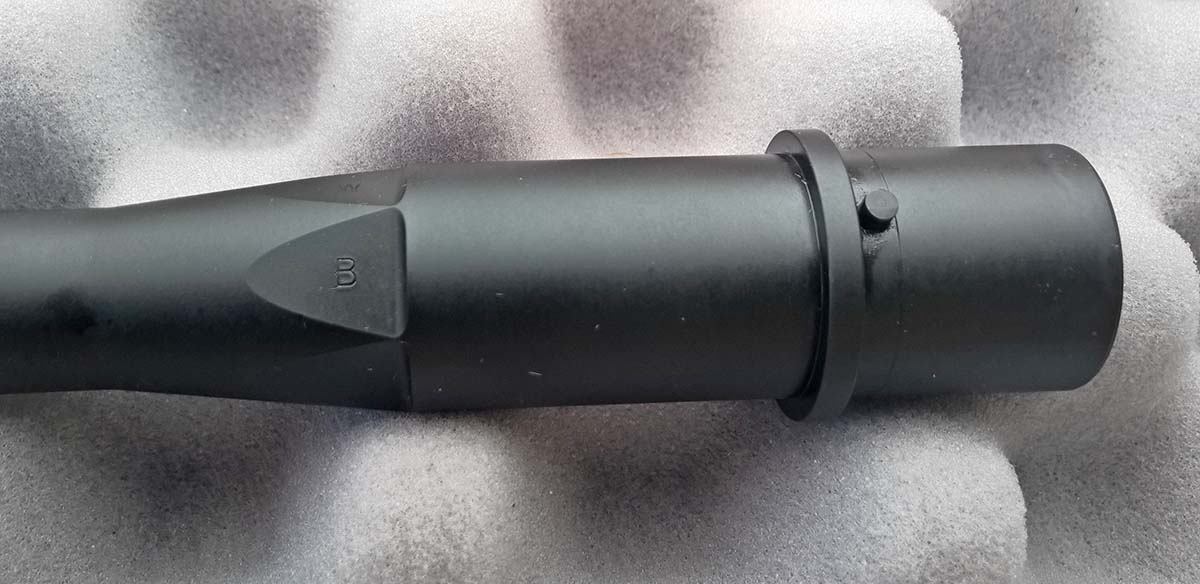

Barrel extension: M4

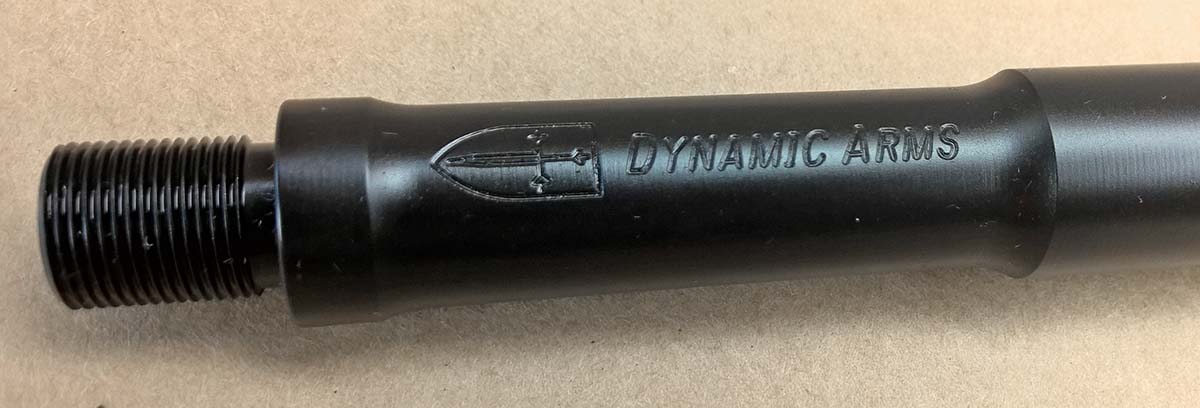

Muzzle threads: 1/2"x28 standard
Finish: Melonite, Cerakote extra charge
Bore: Melonite / salt bath nitride
Color Options:
Black, Tungsten Grey, Flat Dark Earth, Patriot Brown, OD Green, Forest Green. Custom colors and Camo extra cost.
Contour under handguards: 0.700" diameter
Contour for gas block: 0.750" diameter
Contour to muzzle: 0.680" diameter
Barrel Steel: 4150 CMV
Twist rate: 1:8 (stabilizes 50gr to 77gr bullets)
Chamber: 5.56mm Nato
Gas system: 9" mid-length with 0.074" and 0.076" gas porting for 16" and 14.5" barrels, respectively
Barrel extension: M4
Muzzle threads: 1/2"x28 standard
Finish: Melonite, Cerakote extra charge
Bore: Melonite / salt bath nitride
Color Options:
Black, Tungsten Grey, Flat Dark Earth, Patriot Brown, OD Green, Forest Green. Custom colors and Camo extra cost.
Stock:
out
out
Check Website for Availability after 5/30/13. Sorry for the delay. Improving production takes time.
Stock:
out
out

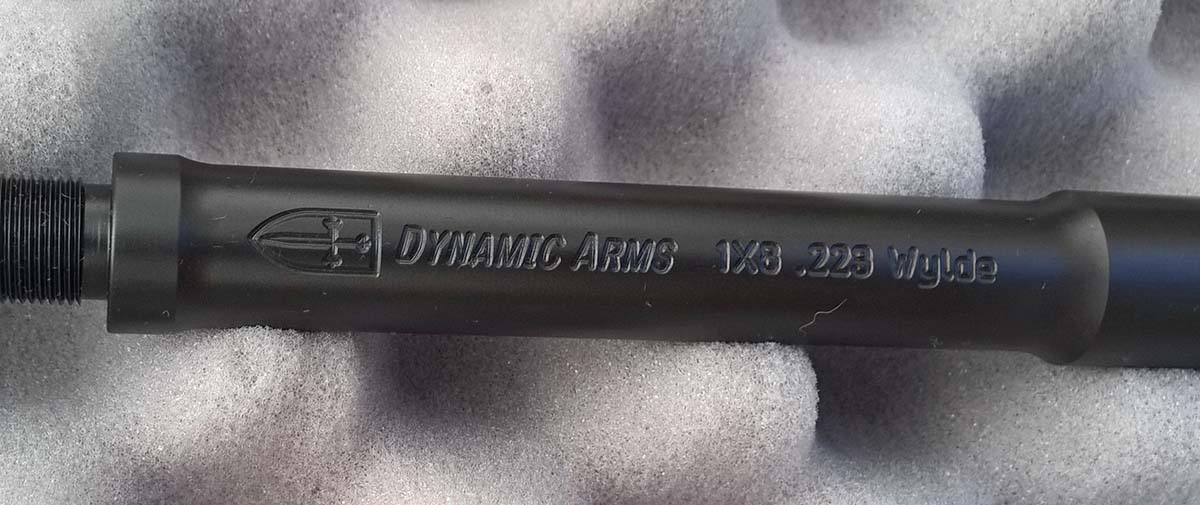

The Tactical Toolbox is now in the process of securing Dynamic Arms Development Group to take over production of the ACB. This will be good news as the barrel quality will go up considerably as well as opening up supply and options. Planned for development and production will be a wider range of barrels in several calibers. All barrels will be melonite (salt bath nitride QPQ method) treated for vastly increased longevity.
Slated for production will be mid-length gas system barrels in 5.56mm, .223 Wylde, 6.5 Grendel, .300 BLK and debuting 6.5 PCC (slated for later development). All barrels will feature advanced contour design for the proper balance of rigidity and weight. Lengths will be 14.5" and 16" with mid-length gas systems. Supermatch will have an additional option of 18" with rifle gas system.
There will be two general lines of barrel: production and supermatch. Production will be button rifled and stress relieved 5R or six groove rifling, depending upon caliber/performance, mil-spec steel barrels. Supermatch will be button rifled and stress relieved three or four groove, depending upon caliber and performance, stainless steel, hand lapped.
Slated for production will be mid-length gas system barrels in 5.56mm, .223 Wylde, 6.5 Grendel, .300 BLK and debuting 6.5 PCC (slated for later development). All barrels will feature advanced contour design for the proper balance of rigidity and weight. Lengths will be 14.5" and 16" with mid-length gas systems. Supermatch will have an additional option of 18" with rifle gas system.
There will be two general lines of barrel: production and supermatch. Production will be button rifled and stress relieved 5R or six groove rifling, depending upon caliber/performance, mil-spec steel barrels. Supermatch will be button rifled and stress relieved three or four groove, depending upon caliber and performance, stainless steel, hand lapped.
